Knowledge Graph Extraction

In this guide, we use outlines to extract a knowledge graph from unstructured text.

We will use llama.cpp using the llama-cpp-python library. Outlines supports llama-cpp-python, but we need to install it ourselves:

pip install llama-cpp-python

To create an outlines LlamaCpp model, you first need to create a Llama object from the llama-cpp-python library. Then you can create the outlines model by calling models.from_llamacpp with the Llama object instance as argument. To create the Llama object, you need to provide the model weights by passing the name of the repository on the HuggingFace Hub, and the filenames or glob pattern (it will automatically download the weights from the hub):

import llama_cpp
import outlines

llm = llama_cpp.Llama(
    "NousResearch/Hermes-2-Pro-Llama-3-8B-GGUF",
    tokenizer=llama_cpp.llama_tokenizer.LlamaHFTokenizer.from_pretrained(
        "NousResearch/Hermes-2-Pro-Llama-3-8B"
    ),
    n_gpu_layers=-1,
    flash_attn=True,
    n_ctx=8192,
    verbose=False
)
model = outlines.from_llamacpp(llm)

(Optional) Store the model weights in a custom folder

By default the model weights are downloaded to the hub cache but if we want so store the weights in a custom folder, we pull a quantized GGUF model Hermes-2-Pro-Llama-3-8B by NousResearch from HuggingFace:

wget https://hf.co/NousResearch/Hermes-2-Pro-Llama-3-8B-GGUF/resolve/main/Hermes-2-Pro-Llama-3-8B-Q4_K_M.gguf

We initialize the model:

from llama_cpp import Llama

llm = Llama("/path/to/model/Hermes-2-Pro-Llama-3-8B-Q4_K_M.gguf", ...)

Knowledge Graph Extraction

We first need to define our Pydantic class for each node and each edge of the knowledge graph:

from pydantic import BaseModel, Field

class Node(BaseModel):
    """Node of the Knowledge Graph"""

    id: int = Field(..., description="Unique identifier of the node")
    label: str = Field(..., description="Label of the node")
    property: str = Field(..., description="Property of the node")


class Edge(BaseModel):
    """Edge of the Knowledge Graph"""

    source: int = Field(..., description="Unique source of the edge")
    target: int = Field(..., description="Unique target of the edge")
    label: str = Field(..., description="Label of the edge")
    property: str = Field(..., description="Property of the edge")

We then define the Pydantic class for the knowledge graph and get its JSON schema:

from typing import List

class KnowledgeGraph(BaseModel):
    """Generated Knowledge Graph"""

    nodes: List[Node] = Field(..., description="List of nodes of the knowledge graph")
    edges: List[Edge] = Field(..., description="List of edges of the knowledge graph")

schema = KnowledgeGraph.model_json_schema()

We then need to adapt our prompt to the Hermes prompt format for JSON schema:

from outlines import Template

generate_hermes_prompt = Template.from_string(
    """
    <|im_start|>system
    You are a world class AI model who answers questions in JSON
    Here's the json schema you must adhere to:
    <schema>
    {{ schema }}
    </schema>
    <|im_end|>
    <|im_start|>user
    {{ user_prompt }}
    <|im_end|>
    <|im_start|>assistant
    <schema>
    """
)

For a given user prompt, for example:

user_prompt = "Alice loves Bob and she hates Charlie."

We can use outlines.Generator by passing the Pydantic class we previously defined, and call the generator with the Hermes prompt:

from outlines import Generator

generator = Generator(model, KnowledgeGraph)
prompt = generate_hermes_prompt(schema=schema, user_prompt=user_prompt)
response = generator(prompt, max_tokens=1024, temperature=0, seed=42)

We obtain the nodes and edges of the knowledge graph:

print(response)
# {"nodes":[{"id":1,"label":"Alice","property":"loves,hates"},
# {"id":2,"label":"Bob","property":"loved_by"},
# {"id":3,"label":"Charlie","property":"hated_by"}],
# "edges":[{"source":1,"target":2,"label":"loves","property":"love"},
# {"source":1,"target":3,"label":"hates","property":"hate"}]}

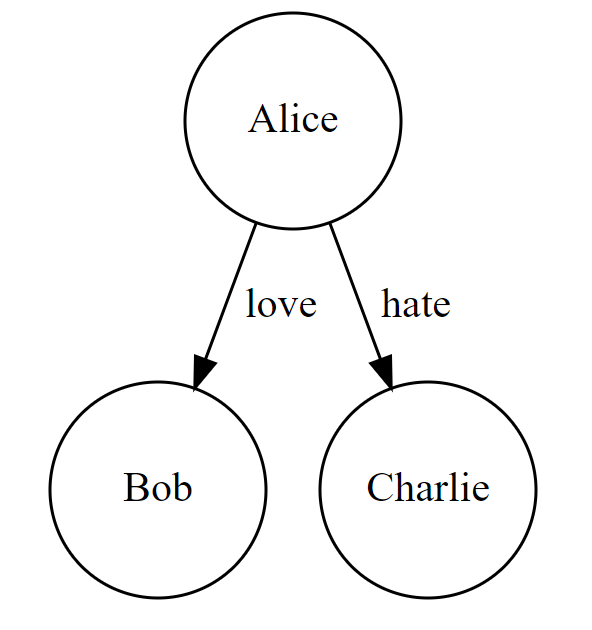

(Optional) Visualizing the Knowledge Graph

We can use the Graphviz library to visualize the generated knowledge graph. For detailed installation instructions, see here.

from graphviz import Digraph

dot = Digraph()
for node in response["nodes"]:
    dot.node(str(node["id"]), node["label"], shape='circle', width='1', height='1')
for edge in response["edges"]:
    dot.edge(str(edge["source"]), str(edge["target"]), label=edge["label"])

dot.render('knowledge-graph.gv', view=True)

This example was originally contributed by Alonso Silva.
